INAWIN P
ACOUSTIC PROJECTION VISOR

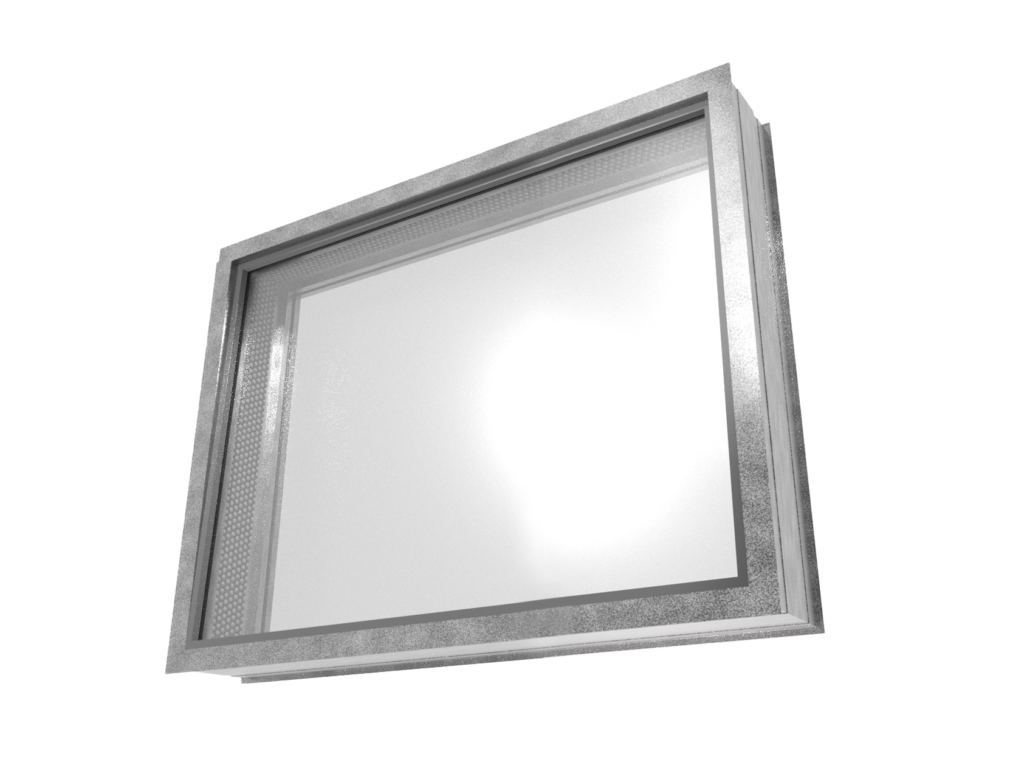

The INAWIN P is a metallic acoustic viewer with an acoustically treated frame and modular mounting system with inter-glass absorbent treatments that allow for high acoustic insulation while still being able to project an image.
There are two standard manufacturing models: the INAWIN P1, with a single frame, and the INAWIN P2, composed of the combination of two frames with intermediate absorbent treatment, and with inclined glass to avoid standing waves and duplication in the projection image.
The INAWIN P acoustic viewers are especially suitable for cinemas, foley rooms, and cinema mixing rooms, where there is a need for high acoustic insulation without sacrificing the projection of an image through the viewer.
INDUSTRY
AUDIOVISUAL
BUILDING
ENTERTAINMENT
CHARACTERISTICS
-

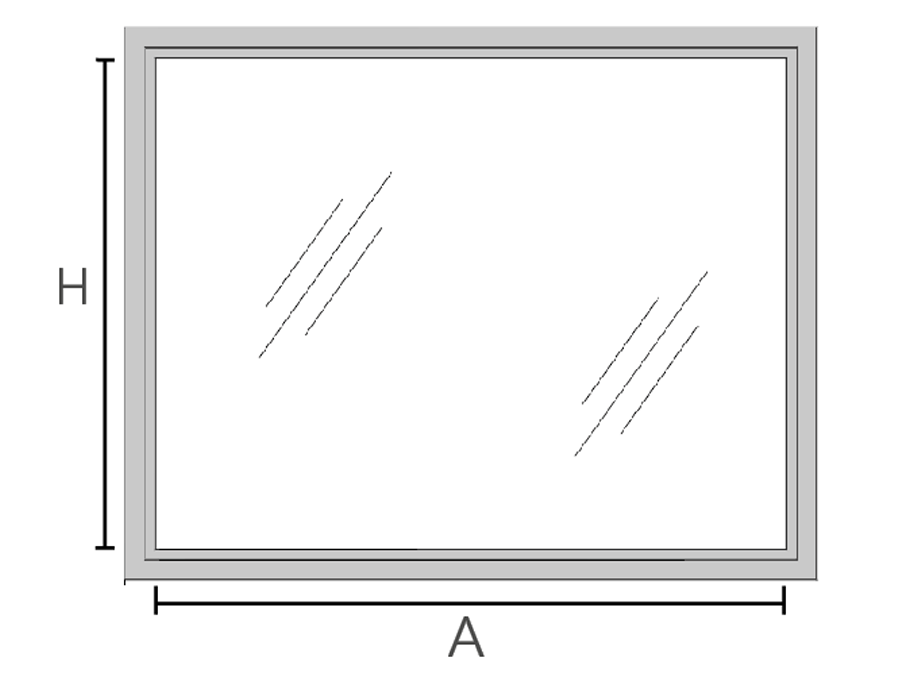

Regarding the dimensions of A width and H height, based on construction possibilities and acoustic insulation needs, the thicknesses of the acoustic glass are defined.
-
Sound reduction index R, dB: 55 dB.
-

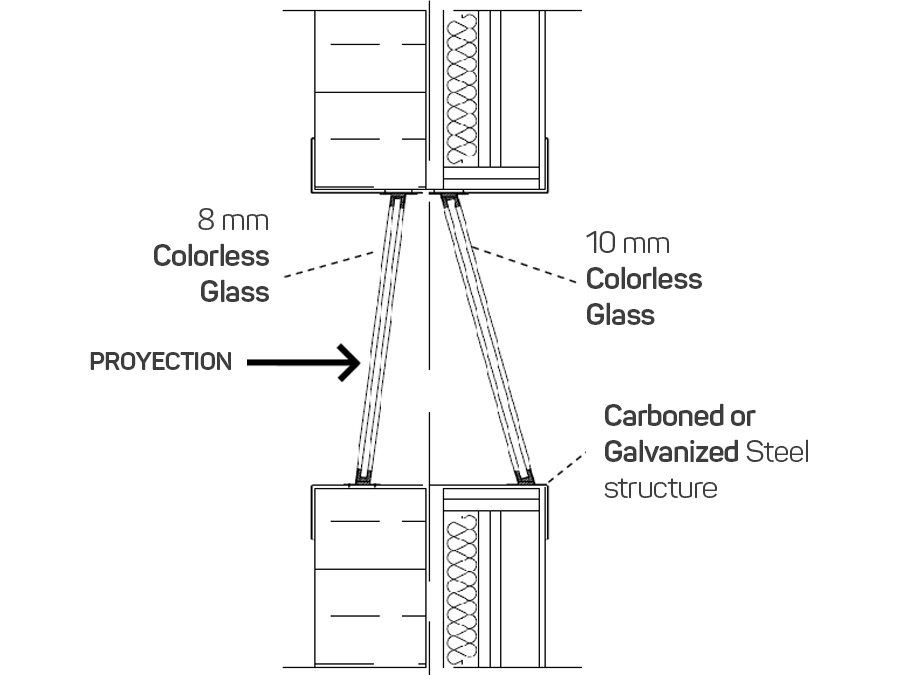

8 mm Colorless Glass on the projection side, and 10 mm Colorless Glass on the other side.
-
Carboned or Galvanized Steel structure.
ARE YOU INTERESTED OR NEED MORE INFORMATION?
Contact us or request the INAWIN P data sheet, where you will find more detailed technical and acoustic characteristics of the product.
