INAMODUL C80

INAMODUL C80

ACOUSTIC PANEL FOR SCREENS, BOOTHS AND ENCLOSURES

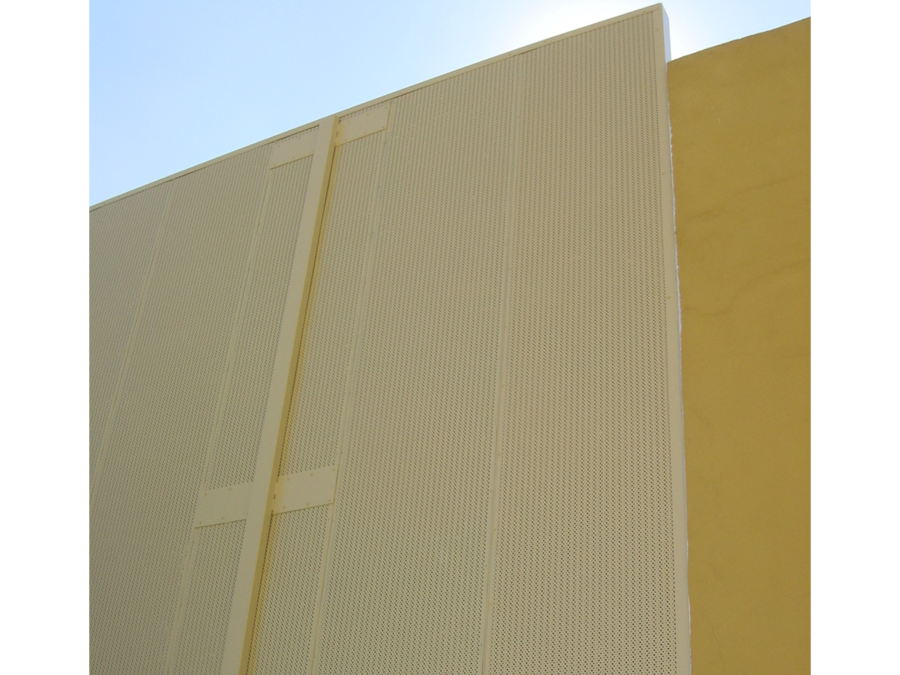

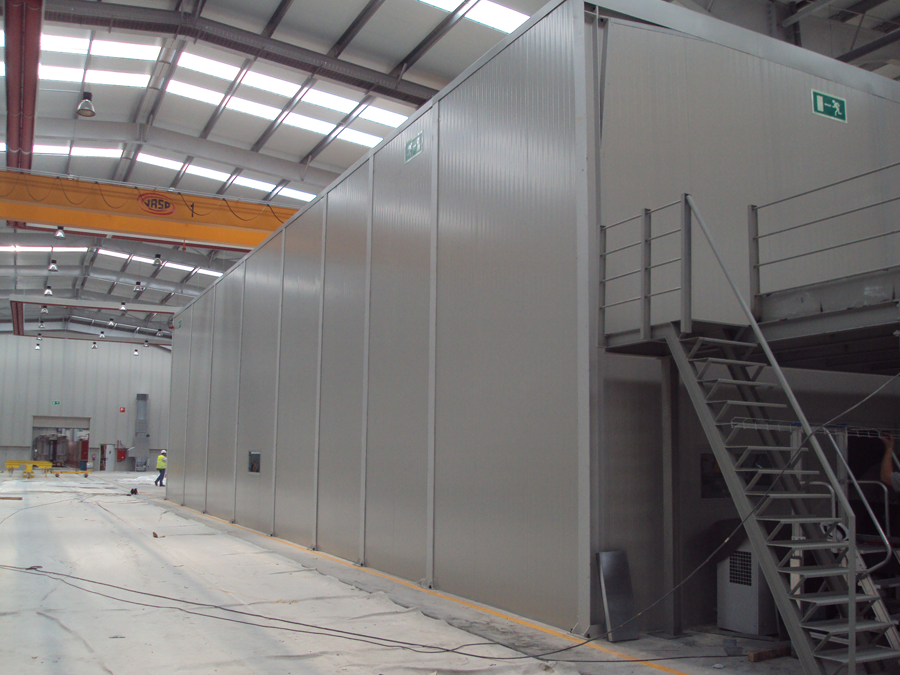

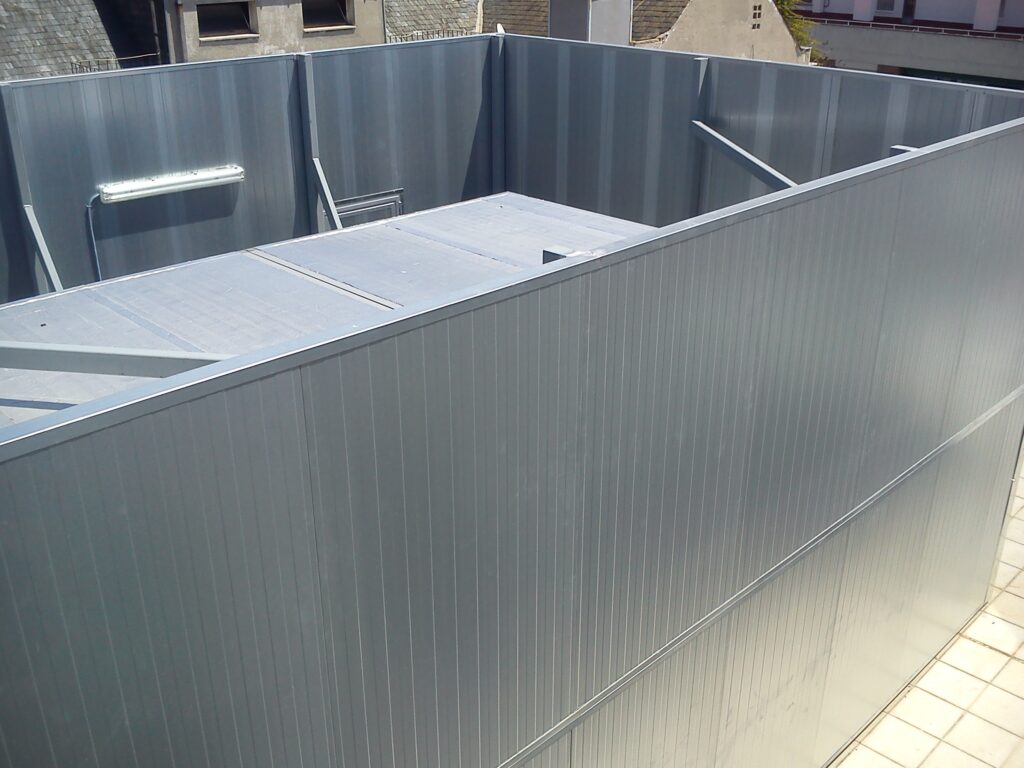

The sound-absorbing panels INAMODUL C80 are designed to be used in acoustic screensacoustic booths, and enclosures for noisy machinery and equipment.

The INAMODUL C80 model, is a prefabricated panel designed specifically for these applications. It is easy to handle and assemble, providing a completely homogeneous finish and ensuring acoustic performance.

INAMODUL C80 INERCO
industry
INDUSTRY

AUDIOVISUAL

building
BUILDING

ENTERTAINMENT

CHARACTERISTICS

  • Absorption coefficient αm: 0,95.

  • Sound reduction index R’, dB: 35,0 dB.

  • Thickness: 80 mm.

  • Width: 1000 mm.

  • Maximum recommended length: 6,00 m.

  • Weight: 17 kg/m².

  • Thermal transmittance coefficient: 0.455 W/m2K.

  • Classification of Reaction to Fire: A2-s1,d0 in accordance with UNE 13501.

  • Classification of Reaction to Fire: EI60 in accordance with EN-13501-2.

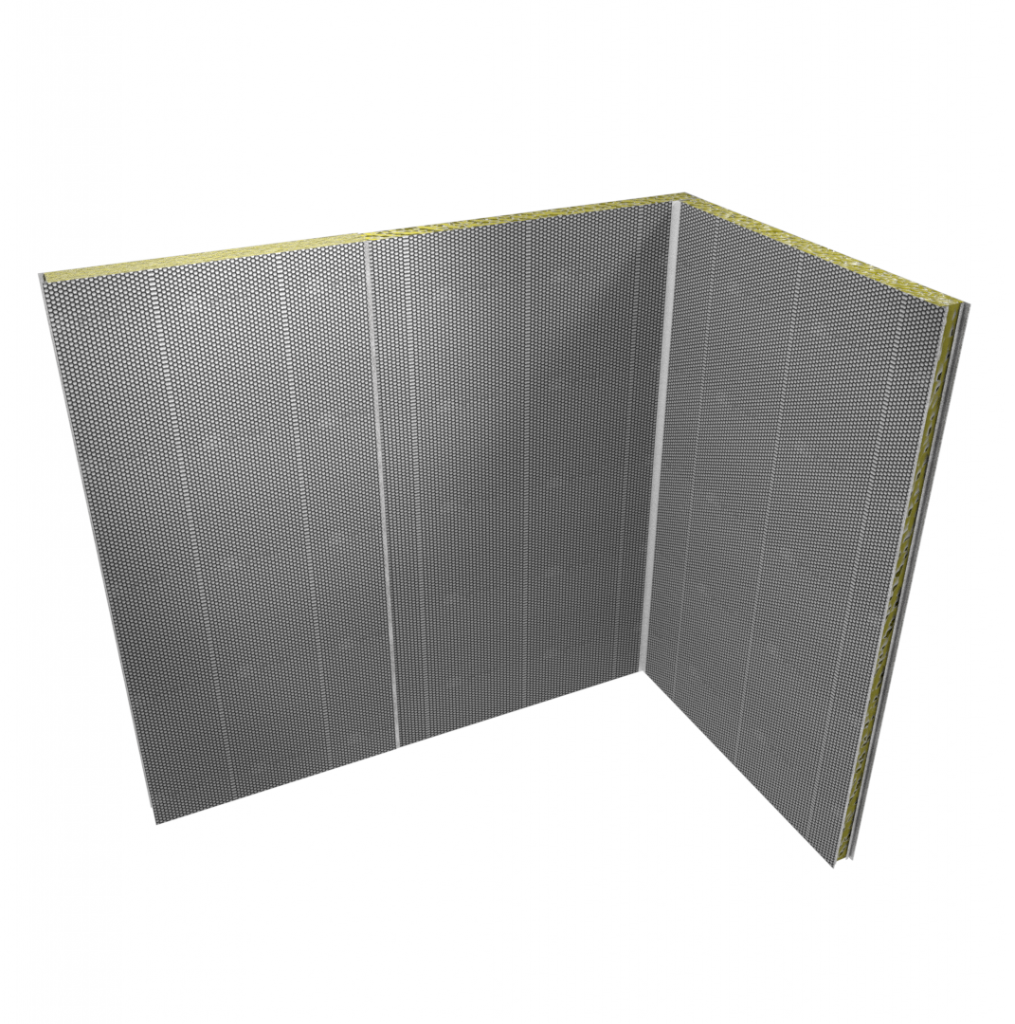

  • Modular structure with a wide variety of possible dimensions.

  • Steel sheets bonded with organic adhesive.

  • Central core of high-density rock wool (>110 kg/m³).

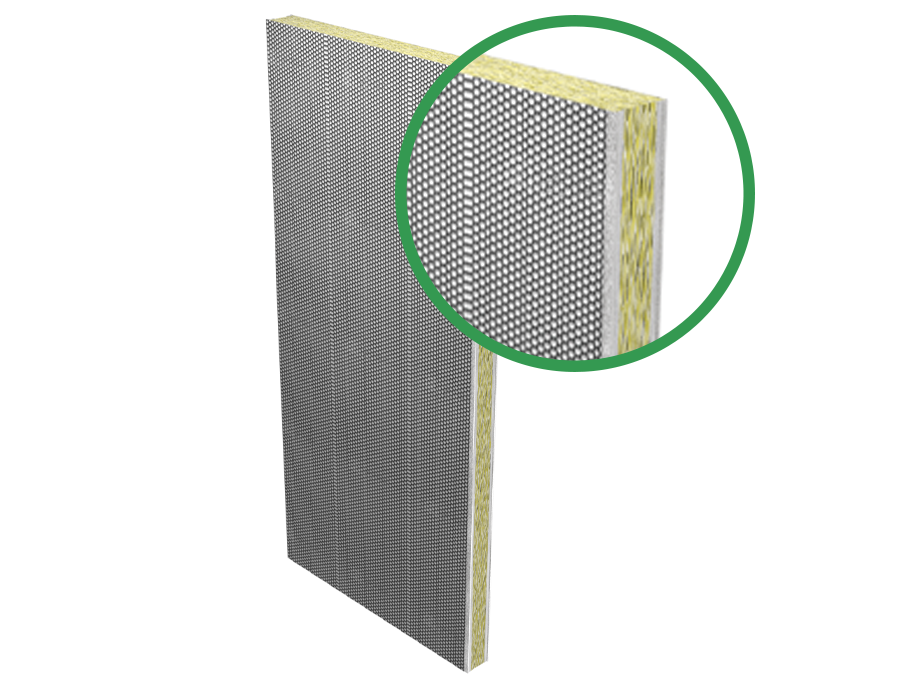

INAMODUL C80 INERCO details
  • Perforated steel sheet (>30% free surface) protected by a fiberglass veil to ensure consistency and durability over time.

  • Modular sizes to facilitate implementation.

  • Type of finish:

    • Precoated color similar to RAL 7038 (Pearl gray) or RAL 9010 (Pyrenean white).

ARE YOU INTERESTED OR NEED MORE INFORMATION?

Contact us or request the INAMODUL C80 data sheet, where you will find more detailed technical and acoustic characteristics of the product.
