INAMODUL 50
ACOUSTIC PANEL FOR SCREENS, BOOTHS AND ENCLOSURES

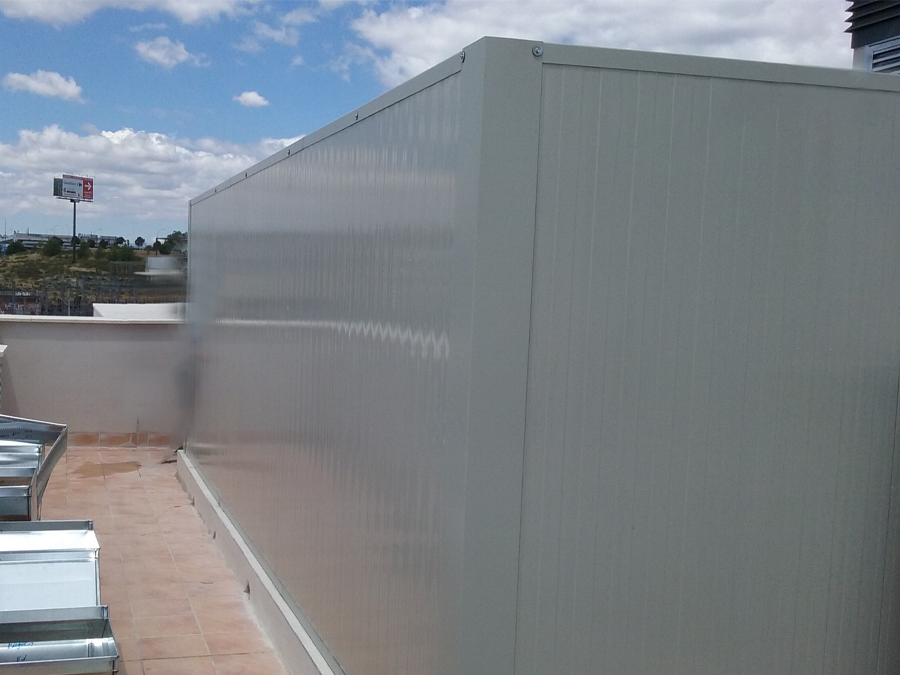

The sound-absorbing acoustic panels INAMODUL 50 are designed to be used in acoustic screens, acoustic booths, and for the encapsulation and enclosures of noisy machinery and equipment.
The INAMODUL 50 model is a prefabricated panel designed specifically for these applications. It is easy to handle and assemble, providing a completely homogeneous finish and ensuring acoustic performance.
INDUSTRY
AUDIOVISUAL
BUILDING
ENTERTAINMENT
CHARACTERISTICS
-
Absorption coefficient αm: 0,90.
-
Sound reduction index R’, dB: 35,0 dB.
-
Thickness: 50 mm.
-
Width: 1150 mm.
-
Type of core: M
-
Maximum recommended length: 8.50 m.
-
Weight: 13.9 kg/m².
-
Thermal transmittance coefficient: 0.690 W/m2K.
-
Classification of Reaction to Fire: A2-s1,d0 in accordance with UNE 13501.
-

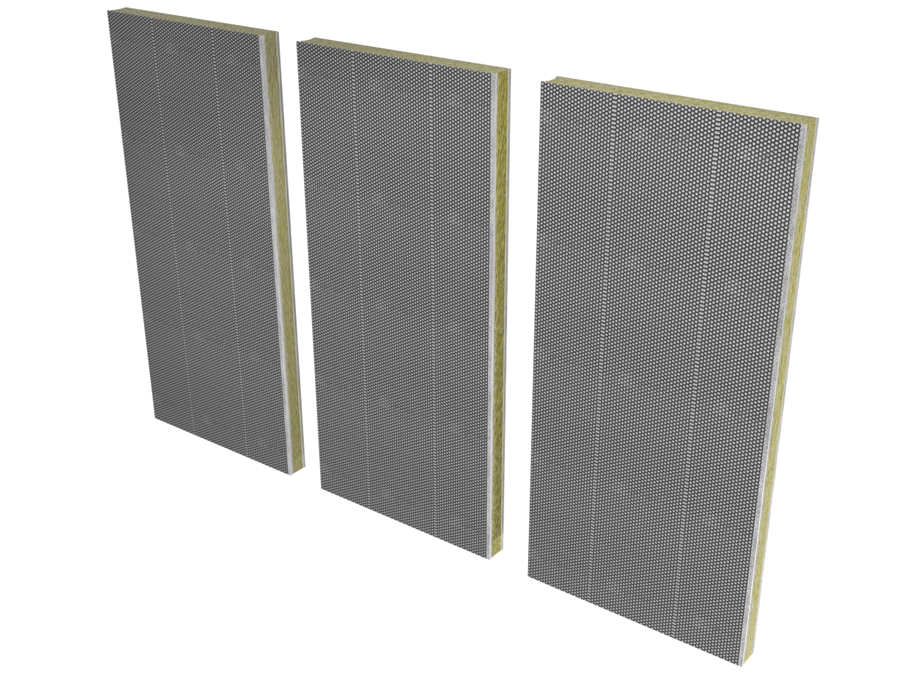

Modular structure with a wide variety of possible dimensions.
-

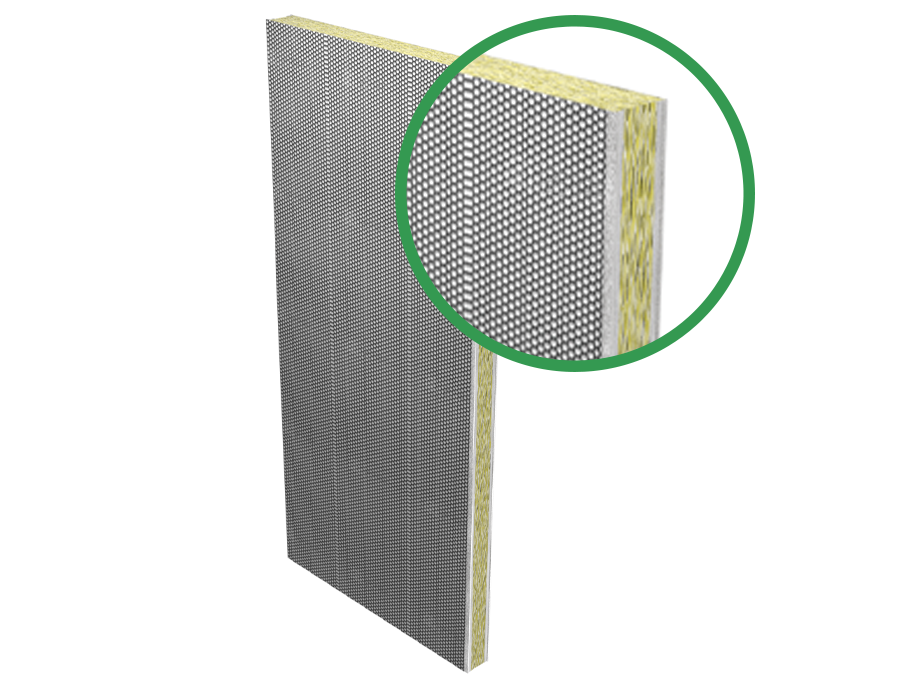

Steel sheets bonded with organic adhesive.
-
Central core of high-density rock wool (>110 kg/m³).
-
Perforated steel sheet (>25% free surface) protected by a fiberglass veil to ensure consistency and durability over time.
-
Modular sizes to facilitate implementation.
-
Type of finish:
- Galvanized S275JR.
- Precoated color similar to RAL 7038 (Pearl gray) or RAL 9010 (Pyrenean white).
