INABAF CONTOUR
ACOUSTIC BAFFLE
INABAF CONTOUR is an acoustic absorptive material for indoor application to mitigate the energetic contribution from the direct sound and the reverberant field.
It is suitable for a wide range of applications:
INDUSTRY
AUDIOVISUAL
BUILDING
ENTERTAINMENT
CHARACTERISTICS
-

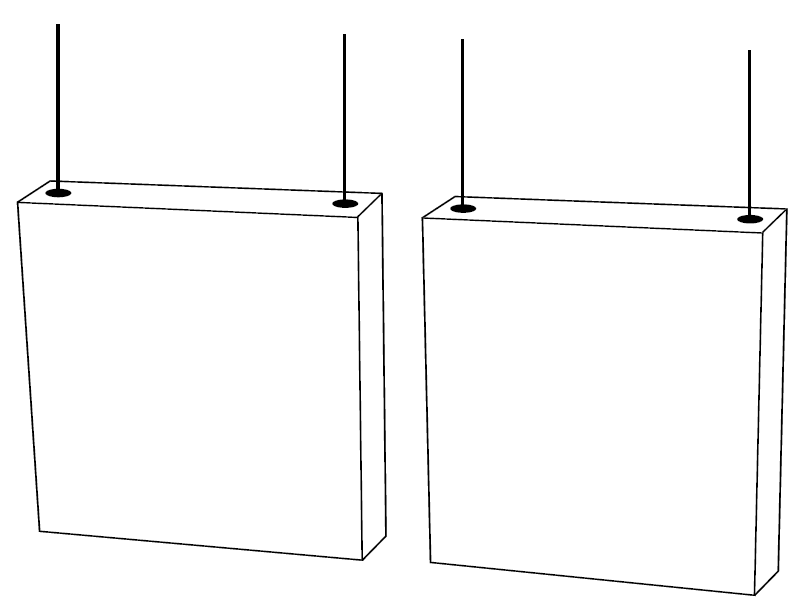

Average absorption coefficient αm: 0,74, INABAF CONTOUR 1200 x 600 x 50 mm module, row spacing 83 cm (Vertical position).
-
Base material: stone wool (mineral wool) base with applied latex paint.
-
Classification of Reaction to Fire A1 in accordance with EN 13501-1.
-
Acoustic behavior: porous absorbent.
-
Plate dimensions: 1.200 x 600 mm.
-
Thickness: 50 mm.
-
Color: white.
-
Weight of the set: 4,6 kg/m² – 6,4 Kg/m².
-
Reflection to light: 79 %.
-
Maintenance: vacuum cleaner.
-
Carbon footprint: 6,12 Kg CO2 eq.
